How to calculate PageRank example? Practical guide and 4-node walkthrough

What PageRank is and why it matters

PageRank models a page's importance as the stationary distribution of a Markov chain built from links, an idea introduced by Brin and Page that remains useful as an interpretable link-based score for many tasks Brin and Page technical report.

That stationary distribution view ties directly to a simple intuition: imagine a random surfer who follows links with some probability and occasionally jumps elsewhere, and the long-run fraction of visits measures relative importance; use this as one feature rather than a single decision rule in ranking systems Gleich survey.

<figure class="special-image-standalone">
  <a href="/" target="_blank" rel="noopener">
    <img src="/img/blog/7ac53d7a356d418c.jpg" alt="Orvus Ltd. Logo" />
  </a>
</figure>

A calm takeaway: treat PageRank as a stable, interpretable link-derived prior that complements content, behavior, and performance signals rather than replacing them Wikipedia article on PageRank.

When and how to use PageRank in practice

PageRank is appropriate when you can build a reasonably complete site or corpus link graph: typical uses include site-level priors, crawl seed selection, and link-quality diagnostics for editorial or spam review Langville and Meyer overview.

Be cautious on sparse or nearly reducible graphs; those data conditions can slow convergence or need careful personalization to avoid misleading scores, so validate with small experiments first Gleich survey.

Mathematical formulation: Markov chain, adjacency and transition matrices

Start by building an adjacency matrix A that records directed links between nodes; converting columns of A to probabilities makes a column-stochastic transition matrix that defines a Markov chain whose stationary distribution is the PageRank vector Brin and Page technical report.

Constructing that matrix requires handling nodes with no out-links, the so-called dangling nodes, by redistributing their mass or treating them as uniformly linking to all nodes, which keeps the matrix well-formed for iteration lecture notes and worked examples.

Formally, the transition matrix defines a linear operator on the rank vector; iterating that operator under the right conditions converges to the principal eigenvector, which is the stationary distribution used as the PageRank score Gleich survey.

<div class="side-by-side special-image-left">
  <a href="/#about" target="_blank" rel="noopener"><img src="/img/blog/e850b4d421840efe.jpg" alt="Over shoulder view of person working on a laptop showing an adjacency spreadsheet with highlighted pagerank values in a minimalist navy and gold Orvus Ltd brand palette" /></a>
  <div class="side-text"><p>When writing code, maintain an explicit node index mapping and verify that each column sums to one after any normalization step; that small check prevents many downstream bugs. See the <a href="https://networkx.org/documentation/stable/reference/algorithms/generated/networkx.algorithms.link_analysis.pagerank_alg.pagerank.html" target="_blank" rel="noopener">NetworkX pagerank documentation</a>.</p></div>
</div>

Damping factor and teleportation: why 0.85 is common

The damping factor alpha blends following links with random jumps: a typical choice is 0.85, which originates from the original formulation and models the probability the random surfer follows a link versus teleporting Brin and Page technical report.

Damping is practical because it enforces irreducibility in combination with teleportation, which yields a unique stationary distribution under standard conditions and improves numerical behavior for many graphs Langville and Meyer overview.

Replace uniform teleportation with a personalization vector when you need to bias scores toward a subset of nodes for site-level tasks; personalization is a straightforward modification that many libraries support.

Computing PageRank: power iteration and convergence

The standard computation is the power iteration, repeatedly multiplying a rank vector by the damped transition matrix until changes fall below a tolerance; this simple method is numerically stable in well-formed cases and is the common starting point for implementations Gleich survey.

Orvus Unique Services

Decide a convergence tolerance (for example a small L1 or L2 threshold) and a maximum iteration cap to avoid pathological runs; monitor the residual norm and iteration count to detect slow convergence or reducibility issues NetworkX documentation.

For large graphs, move to sparse matrix operations and avoid dense representations; sparse multiplications are central to efficient PageRank at scale and most libraries expose sparse-friendly routines. See a fast implementation on GitHub at https://github.com/asajadi/fast-pagerank.

From links to matrix: practical steps and edge cases

Extract directed links and map each unique page to an index so you can populate an adjacency matrix efficiently; keep a compact mapping table to convert between node ids and matrix indices lecture notes and worked examples.

<div class="side-by-side image-2-right">

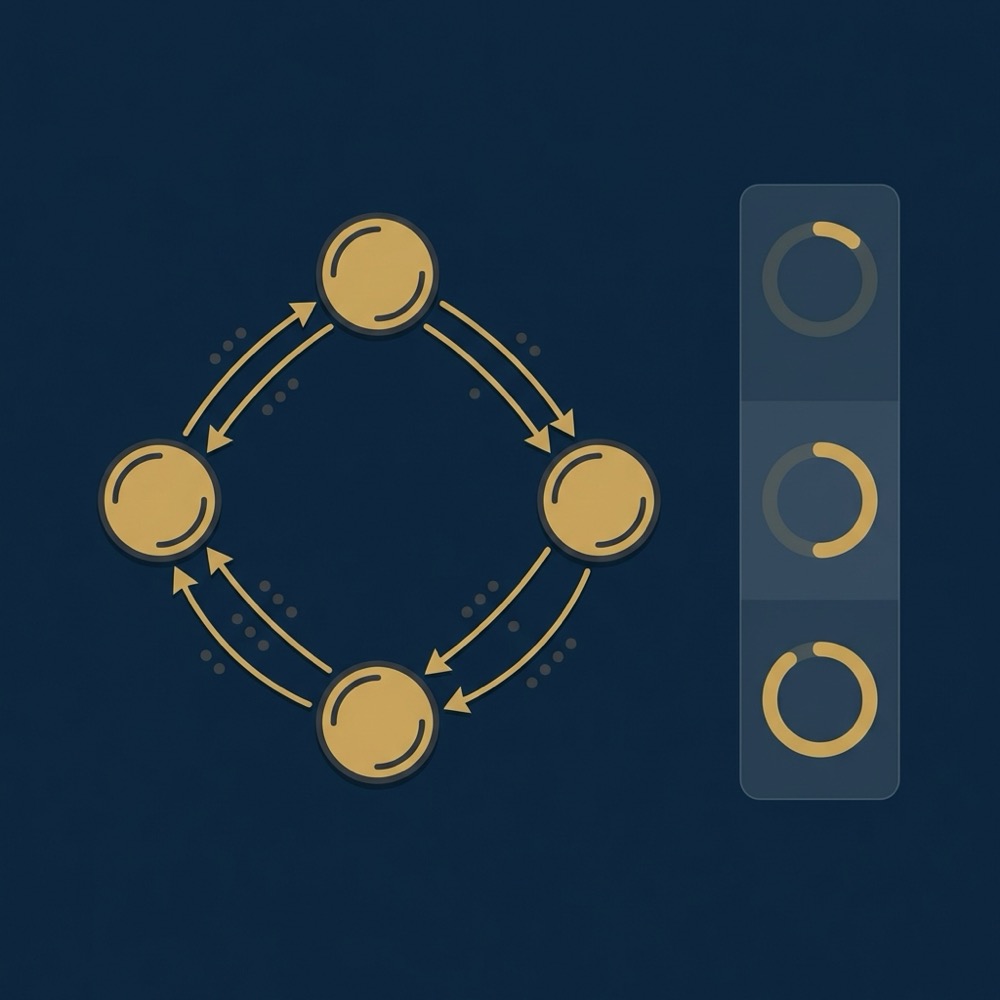

  <div class="side-text"><p>Preprocessing tips: compress low-value nodes if they are operationally irrelevant, document any removals, and retain reproducible scripts for graph construction so results can be audited and reproduced.</p></div>
  <a href="/#about" target="_blank" rel="noopener"><img src="/img/blog/29598fae26ed8d0c.jpg" alt="Compact 2D vector infographic of a four node directed graph with a stepwise visual overlay illustrating pagerank flow in Orvus brand colors" /></a>
</div>

Handle self-links by deciding whether to keep them; duplicate links can be collapsed or counted once depending on your interpretation, and disconnected components require careful thought because they affect normalization and convergence behavior Brin and Page technical report.

Worked numeric example: compute PageRank for a 4-node graph

We demonstrate with a directed 4-node graph labeled A, B, C, D and the following links: A -> B, B -> C, C -> A and C -> D (so D is a dangling node in this toy graph); this compact example follows the approach used in educational notes and lets you compute each step by hand or in a spreadsheet lecture notes and worked examples.

Step 1: adjacency and column-stochastic matrix

Build the adjacency matrix A using the node order [A, B, C, D] where column j lists out-links from node j. For our links the raw adjacency (columns are sources) is:

A =

• column for A: link to B -> entries [0,1,0,0]
• column for B: link to C -> entries [0,0,1,0]
• column for C: links to A and D -> entries [1,0,0,1]
• column for D: no out-links -> entries [0,0,0,0]

Normalize columns to probabilities: divide each nonzero column by its out-degree. Columns become column-stochastic, and for D (the dangling node) treat it as linking uniformly to all nodes so its column becomes [1/4,1/4,1/4,1/4]; that restoration is a standard educational approach to keep the matrix stochastic lecture notes and worked examples.

Step 2: apply damping and run iterations

With alpha = 0.85 and uniform teleportation, the damped operator is M = alpha * P + (1-alpha) * (1/n) * 11^T where P is the column-stochastic matrix and n=4. Start with an initial rank vector r0 = [1/4,1/4,1/4,1/4]. Multiply r1 = M * r0 and continue until the change between rk and rk+1 is below your chosen tolerance.

Step 3: verify convergence and interpret results

After a few iterations the vector stabilizes; check that the entries sum to one, inspect relative orderings, and remember that small differences in values can be less meaningful than rank buckets for downstream use.

In practice, reproduce these steps in a spreadsheet by computing P, forming M explicitly for n=4, and iterating the matrix multiply; this helps validate your implementation before scaling lecture notes and worked examples.

Implementation at scale: sparse matrices, libraries and performance

Sparse matrix representations are essential for larger graphs because they reduce memory and computational cost; storing only nonzero entries and using sparse multiplication keeps PageRank feasible on real datasets NetworkX documentation.

NetworkX provides a convenient API for experimentation and exposes parameters for damping, personalization, and tolerance; use its sparse-aware routines for moderate-scale work and profile memory and runtime on representative samples. For managed help see Orvus services.

When performance matters, evaluate sparse linear-algebra libraries and consider distributed or out-of-core options; tune tolerances to balance compute time and the precision your downstream models require Langville and Meyer overview.

Choosing parameters: damping, personalization and stopping tolerance

Alpha = 0.85 is a sensible default, but choose damping based on graph structure and the behavioral model you want to represent; lower alpha increases teleportation weight and can help mixing on graphs with long chains Brin and Page technical report.

Personalization vectors bias PageRank to favor subsets of nodes for site-level tasks; test personalization choices on small samples and document the vector so feature engineering downstream is reproducible Langville and Meyer overview.

Set stopping rules using an L1 or L2 difference threshold and a maximum iteration cap to avoid runaway computation; log residuals and iteration counts to help detect graphs needing special handling Gleich survey.

Interpreting PageRank results and integrating them into systems

Convert raw PageRank scores into usable features by normalizing, applying log transforms, or grouping into rank buckets; choose a transformation that stabilizes distributional tails for your model inputs Gleich survey.

Combine pagerank-derived features with content relevance, behavioral engagement, and performance signals in learning-to-rank models so link priors are one input among many rather than the deciding factor Gleich survey.

Validate PageRank features by sampling known pages and confirming that high-ranked nodes match intuitive site structure; if results diverge, re-check graph construction and preprocessing decisions.

Common mistakes and troubleshooting

Frequent data bugs include mis-mapped node ids, duplicate edges, and forgotten dangling-node handling; these issues often explain unexpected score distributions and are straightforward to diagnose by auditing the adjacency and normalization steps lecture notes and worked examples.

Numerical issues include slow convergence on nearly reducible graphs and tolerances that are either too tight or too loose; monitor residual norms and consider adjusting alpha or personalization to improve mixing Gleich survey.

Operational mistakes include treating PageRank as a single ranking signal or over-interpreting small score differences; instead, use features and buckets and validate against downstream metrics before making decisions Wikipedia article on PageRank.

Decision checklist: should you compute PageRank and how to measure success

Pre-flight checklist: confirm link data quality, choose graph scope, decide on damping and personalization, and set tolerances and iteration caps before running experiments Brin and Page technical report.

Success criteria: reproducible feature behavior across runs, stability of node ordering on representative samples, and useful correlation with specific downstream metrics in your context rather than relying on PageRank alone Gleich survey.

Monitoring: log iteration counts, residual norms, and a small set of sample node ranks so you detect data drift or construction errors quickly during pipelines.

Practical next steps and further reading

Starter experiments: reproduce the 4-node example in a spreadsheet, then run a sparse implementation on a small crawl sample to compare results and timing, following the educational notes as a reference lecture notes and worked examples. See related posts in Orvus useful knowledge.

Authoritative reads are Brin and Page's original report for history and intuition and Langville and Meyer for deeper methodology; use library docs to map concepts to code Brin and Page technical report. Learn more about Orvus here.

Operational advice: treat pagerank as a feature, validate transformations, and iterate on preprocessing choices before deploying scores in models Gleich survey.

<figure class="special-image-standalone">
  <a href="/" target="_blank" rel="noopener">
    <img src="/img/blog/7ac53d7a356d418c.jpg" alt="Orvus Ltd. Logo" />
  </a>
</figure>

Appendix: short code snippets and convergence tips

Minimal pseudocode for damped power iteration: initialize r = uniform vector; repeat r_new = alpha * P * r + (1-alpha) * v where v is the teleportation vector; compute residual = ||r_new - r||; if residual < tolerance stop; else r = r_new. This pattern is the core loop used in many references Gleich survey. See the iterative discussion in this note https://acme.byu.edu/00000179-d4cb-d26e-a37b-fffb57790000/pagerank-pdf.

NetworkX example notes: use the pagerank function and set alpha, personalization, and tol; profile the call on a sample graph and log iterations to select a practical tolerance for your dataset NetworkX documentation.
